Z-AlertBurst Sensors & Indicators

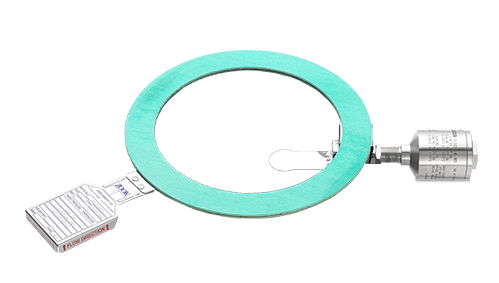

Z-Alert is a Non-Invasive magnetic rupture disk detection system. The detection device is situated remote of the disk allowing maintenance and inspection without interfering with the disk assembly.

Get a Quote Explore Z-SIZE

Try Z-SIZE, our user-friendly online tool that calculates the accurate rupture disk size in just minutes

Features
Specifications
Installation

Z-Alert is certified to: ATEX, IECExd, IP66 to 68, UL, TRCU, SIL2
Rated for use in Gas & Dust Zones 1, 2, 21 & 22
Z-Alert has a 316 Stainless Steel Wireable Connection Head – Side Entry Housing with volt free contacts. It has a maximum switching current of 2.5A. It requires the use of a magnetic target to operate
Using the latest production methods and materials this product meets global certification requirements and its robust design makes it suitable for use in arduous and hazardous environments

Body Shape: Wireable Connection Head – Side Entry
Body Material: 316 Stainless Steel
Max Current: 830ma
Connection: M20 X 1.5mm Conduit Entry
Body Type: 5/8″ Unf
Operating Temperature: -60°c To +120°c

Z-Alert Installation Guide
