Forward Acting Disks (Tension Loaded)

Proven Superior Quality Scored, Solid, Flat Contour and Composite Designs

ARD
ARD Disk

ARD Disks provide simple, inexpensive protection against any condition. No holder required.

Sizes: 1" - 44" (25 mm - 1117 mm)
Burst Ratings: 1 psig - 60 psig (0.07 barg - 4 barg)
ASME Compliant: No
PED Compliant: Yes

Learn More
D
D Disk

Features a state-of-the-art laser slotted metal top section. Mounts into a 7A - Angle Seat Holder.

Sizes: 1/2" - 24" (13 - 600 mm)
Burst Ratings: 3 psig - 2500 psig (0.21 barg - 172 barg)
ASME Compliant: Liquid and Gas
PED Compliant: Yes

Learn More
FAC-R
FAC-R Disk

High performance Forward-Acting Rupture Disk design. Mounts into the FAH Pre-Torque Holder.

Sizes: 1" - 12" (25 mm - 300 mm)
Burst Ratings: 3 psig - 2500 psig (0.21 barg - 172 barg)
ASME Compliant: Contact ZOOK
PED Compliant: Yes

Learn More

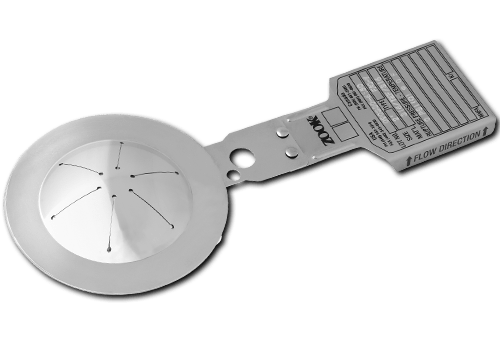

FAC-V
FAC-V Disk

High performance Forward-Acting Rupture Disk design. Mounts into the FAH Pre-Torque Holder.

Sizes: 1" - 12" (25 mm - 300 mm)
Burst Ratings: 3 psig - 2500 psig (0.21 barg - 172 barg)
ASME Compliant: Contact ZOOK
PED Compliant: Yes

Learn More

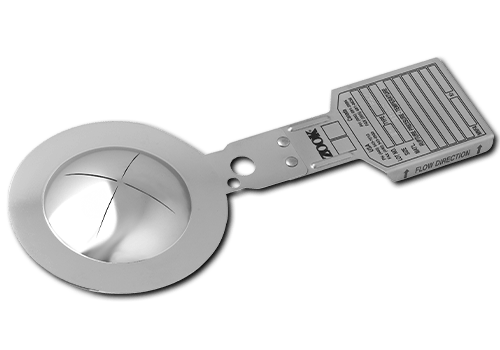

FAX
FAX Disk

High performance Forward-Acting Rupture Disk design. Mounts into the FAH Pre-Torque Holder.

Sizes: 1" - 12" (25 mm - 300 mm)
Burst Ratings: 45 psig - 1500 psig (3.10 barg - 103 barg)
ASME Compliant: Liquid and Gas
PED Compliant: Yes

Learn More

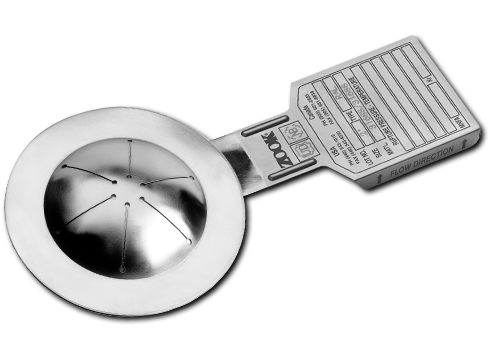

FD
FD Disk

FD Series offers a wide variety of flange mounted rupture disk solutions. No holder required.

Sizes: 1/2" - 36" (13 mm - 914 mm)
Burst Ratings: 3 psig - 2500 psig (0.21 barg - 172 barg)
ASME Compliant: No
PED Compliant: Yes

Learn More

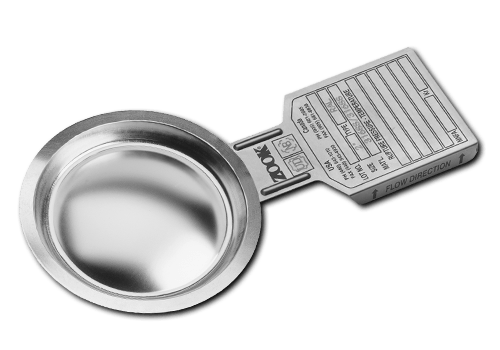

PB
PB Disk

Forward-acting, tension-loaded rupture disk design without score lines. Mounts into a 7A - Angle Seat Holder.

Sizes: 1/4" - 24" (6 mm - 600 mm)
Burst Ratings: 3 psig - 60000 psig (0.21 barg - 4138 barg)
ASME Compliant: Liquid and Gas
PED Compliant: Yes

Learn More
Double Disk Assembly
Double Disk Assembly

Double rupture disk assembly is a good solution for severe process environments.

Learn More
SFAZ
SFAZ Disk

Covers the majority of rupture disk applications.
Designed to be used in the SR7A Holder

Sizes: 1/2" - 24" (13 - 600 mm)
Burst Ratings: 15 - 6000 psig (1.03 - 413 barg)
ASME Compliant: Gas Only
PED Compliant: Yes

Learn More
FDZ
FDZ Disk

FDZ features a state-of-the-art laser slotted metal top section.

Sizes: 11/16" - 44" (17 mm - 1117 mm)
Burst Ratings: 3 psig - 2000 psig (0.21 barg - 138 barg)
ASME Compliant: No
PED Compliant: Yes

Learn More
